MyNeSMy Network Scanner

See every device on your network — your family's user-friendly network scanner.

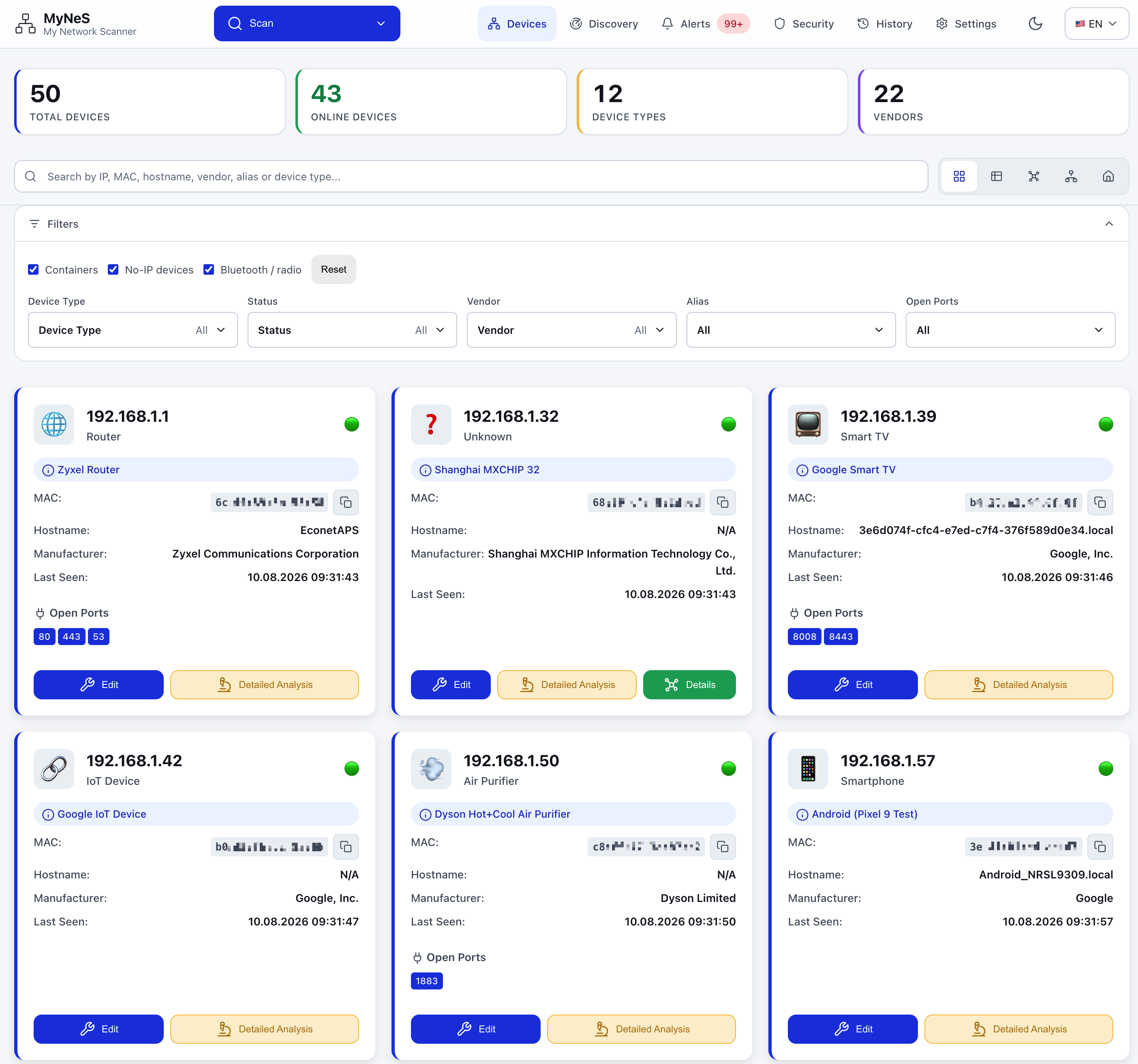

A self-hosted, open-source application that scans every device on your local network — routers, laptops, phones, IP cameras, consoles, smart-home appliances — and lets you manage them from a modern, user-friendly web interface. Advanced scanning, AI-powered device identification, and security analysis included.

View on GitHub Docker quick start
ARP · mDNS · SSDP · BLE · MQTT Runs on a Raspberry Pi No cloud, no telemetry
Capabilities

Everything you need to map a home network

From a fast ARP sweep to AI-assisted identification, MyNeS turns a wall of IP addresses into an inventory you can actually read.

%WEB%

Web-based interface

A modern, responsive, user-friendly web UI for managing your network.

%DISCOVER%

Automatic network discovery

Determines your local network range automatically.

%ARP%

ARP scanning

Uses the ARP protocol for fast device discovery.

%PORT%

Advanced port scanning

Comprehensive service detection across 1000+ ports.

%TYPE%

Device type detection

Automatically detects routers, computers, phones, cameras and more.

%DOCKER%

Docker integration

Detects running containers and virtual network interfaces.

%PROTO%

Multi-protocol analysis

SSH, FTP, HTTP and SNMP support for deeper detection.

%MANAGE%

Device management

Edit device info, add custom attributes and manual ports — and your edits survive every rescan.

%AI%

AI-powered identification

“Identify with AI” via Anthropic, OpenAI or OpenRouter (optional, bring your own key). The MyNeS AI service turns raw fingerprints — MAC, open ports, banners, mDNS/SSDP records — into a confident device name, type and OS guess.

%SEC%

Security & CVE analysis

A weighted fleet risk score, severity distribution and per-device CVE exposure, worst first — matched offline against each device's fingerprint.

%OUI%

OUI / vendor database

IEEE OUI database with 37,000+ vendor records and online API fallback.

%LANG%

Turkish & English

Full Turkish and English UI — switch language anywhere in the app.

Discovery

An IP scan misses half a home network

MyNeS listens to everything that announces itself: mDNS/Bonjour (printers, NAS, Chromecast, HomeKit), Matter, SSDP/UPnP (routers, smart TVs, cameras, consoles), Bluetooth LE (devices with no IP at all) and Zigbee/Z-Wave over MQTT.

ARP mDNS / Bonjour Matter SSDP / UPnP Bluetooth LE Zigbee / Z-Wave · MQTT

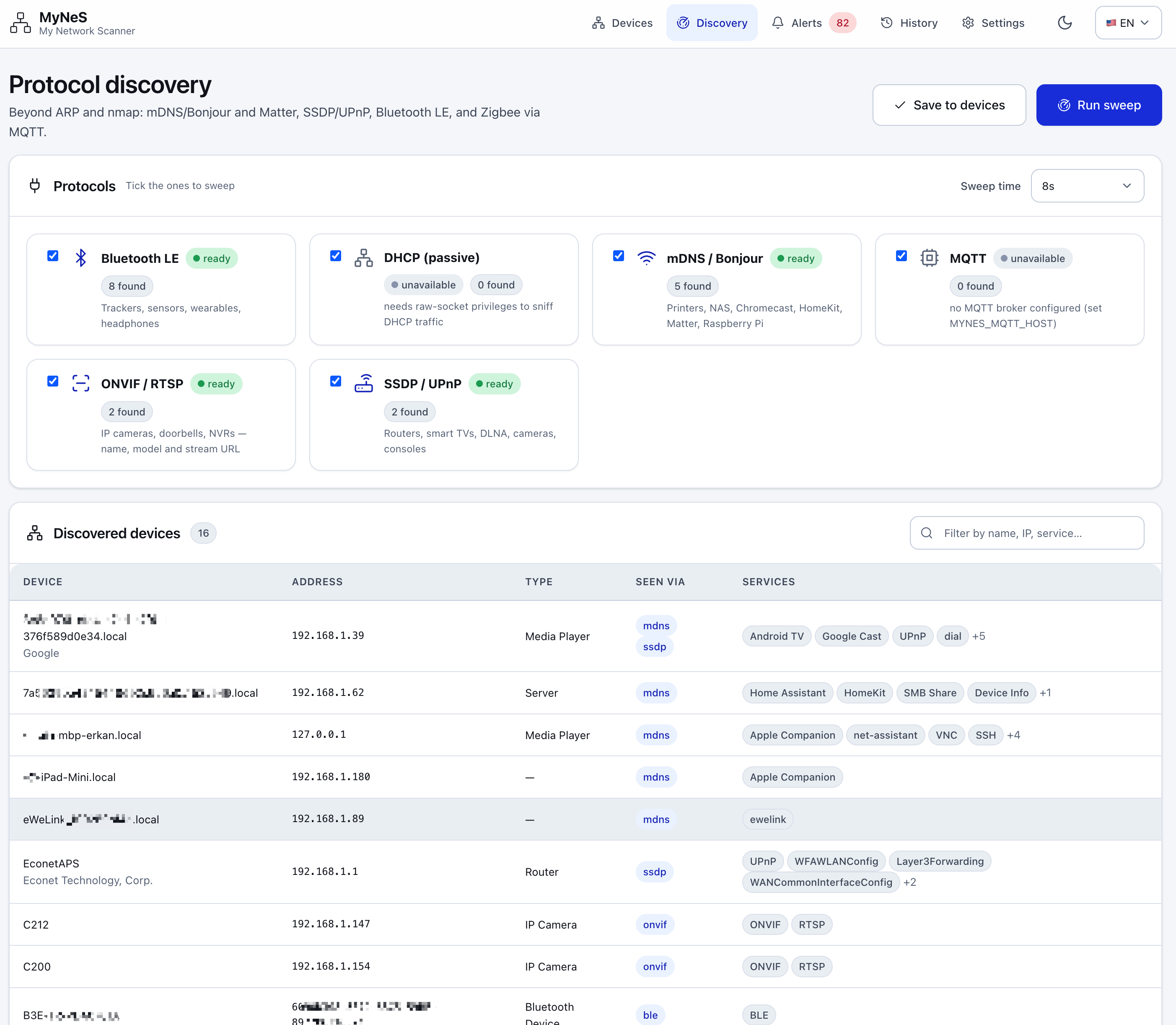

MyNeS multi-protocol discovery screen listing devices found via mDNS, SSDP, Bluetooth LE and MQTT
One inventory, four lenses

Read your network the way that fits the task

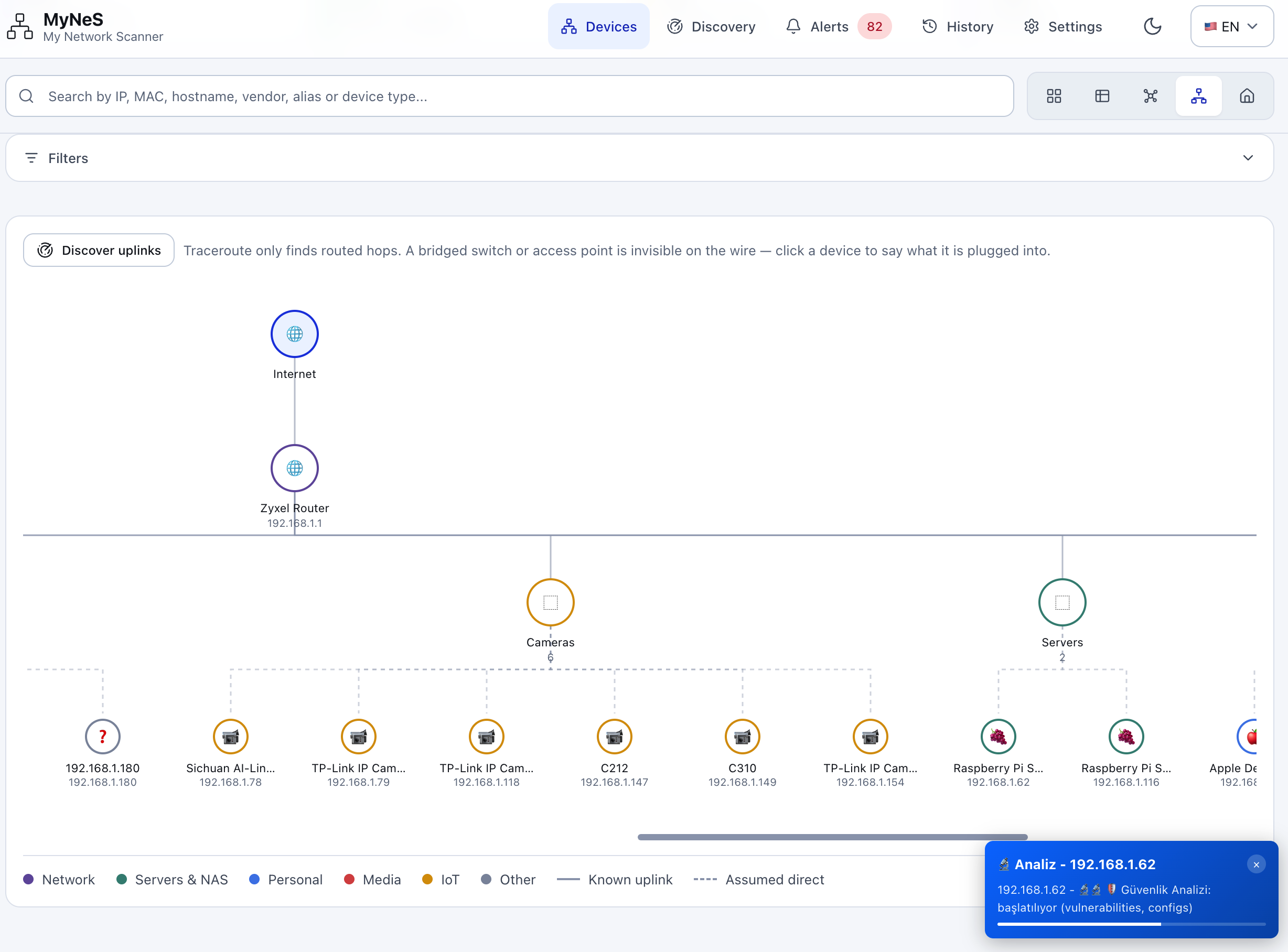

The device list can be read four ways, switched from the toolbar. Pick a view.

Graph

The whole network at a glance

Subnet gateways sit as hubs; every device hangs off the segment it lives on. A host's Docker networks nest under the host that runs them.

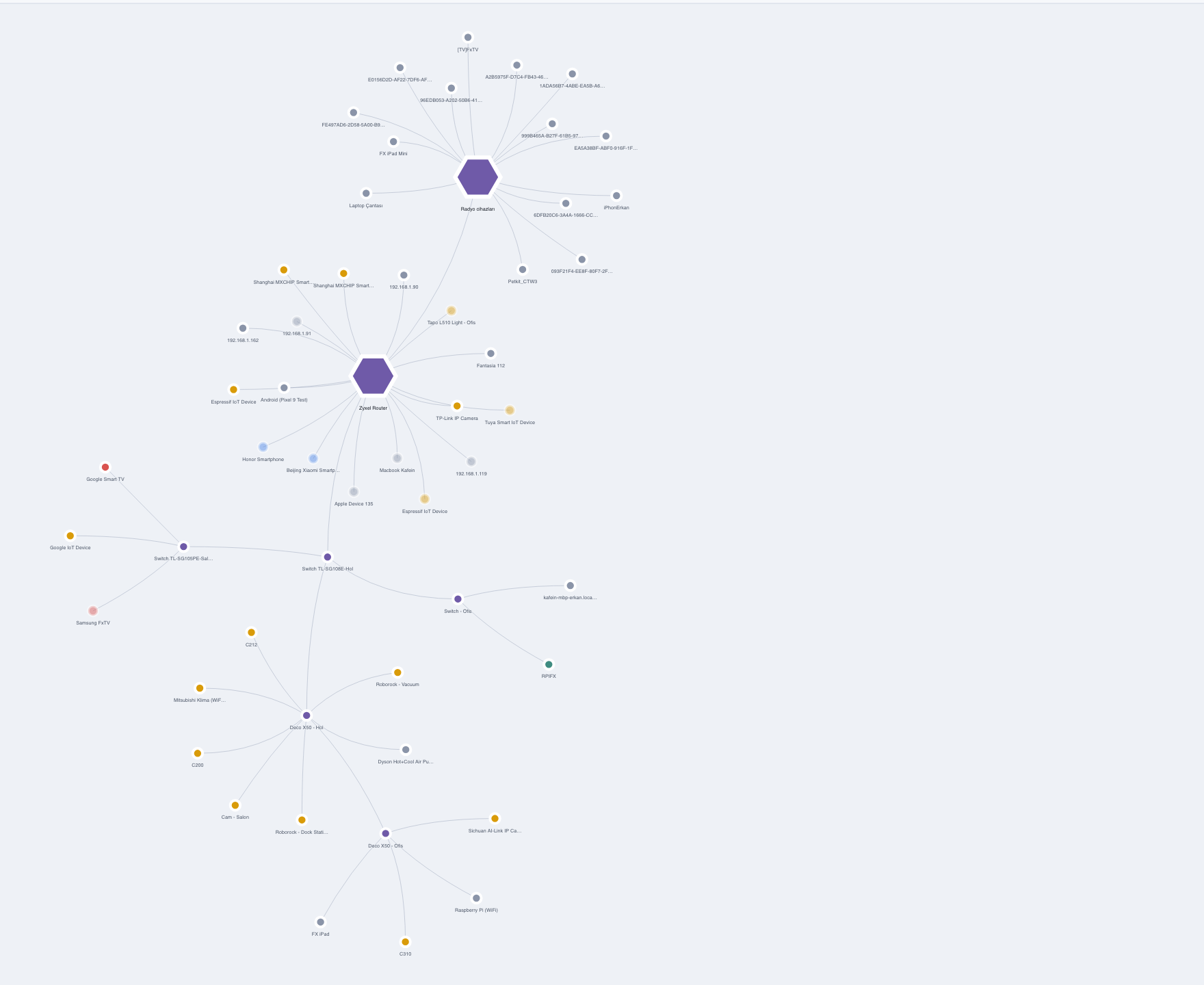

MyNeS interactive graph view: subnet gateways as hubs with every device on its segment, in high resolution

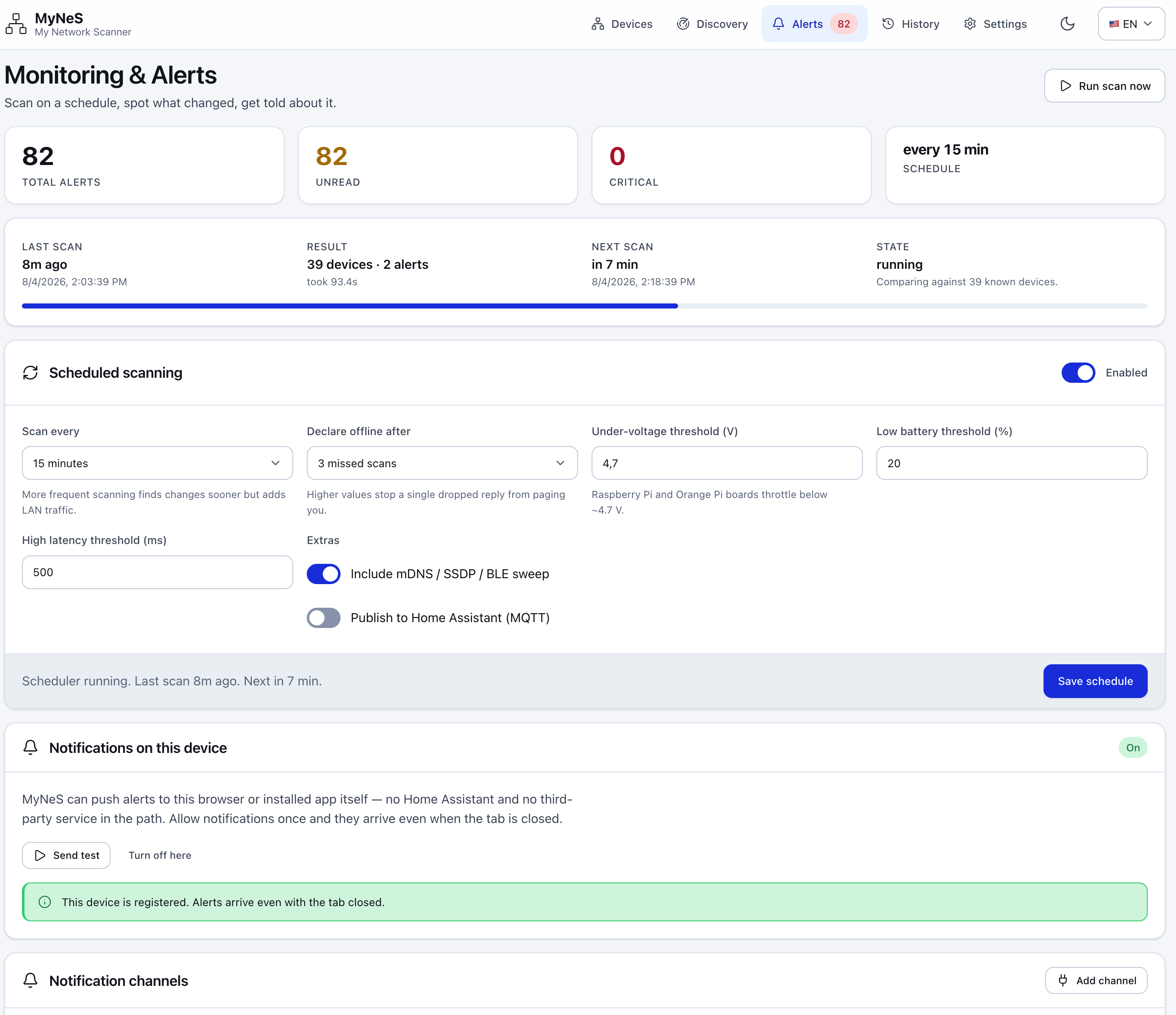

MyNeS monitoring and alerts screen showing scheduled scans and change notifications
Monitoring

It watches so you don't have to

Scans on a schedule, diffs consecutive scans and reports what matters. Delivery via MyNeS's own Web Push, a Home Assistant notify service, ntfy, Telegram, webhook, Slack, Discord and email.

New device Device offline IP change MAC change (ARP spoofing) Newly opened port Under-voltage Low battery High latency Weak signal
Security

Your fleet's attack surface, worst first

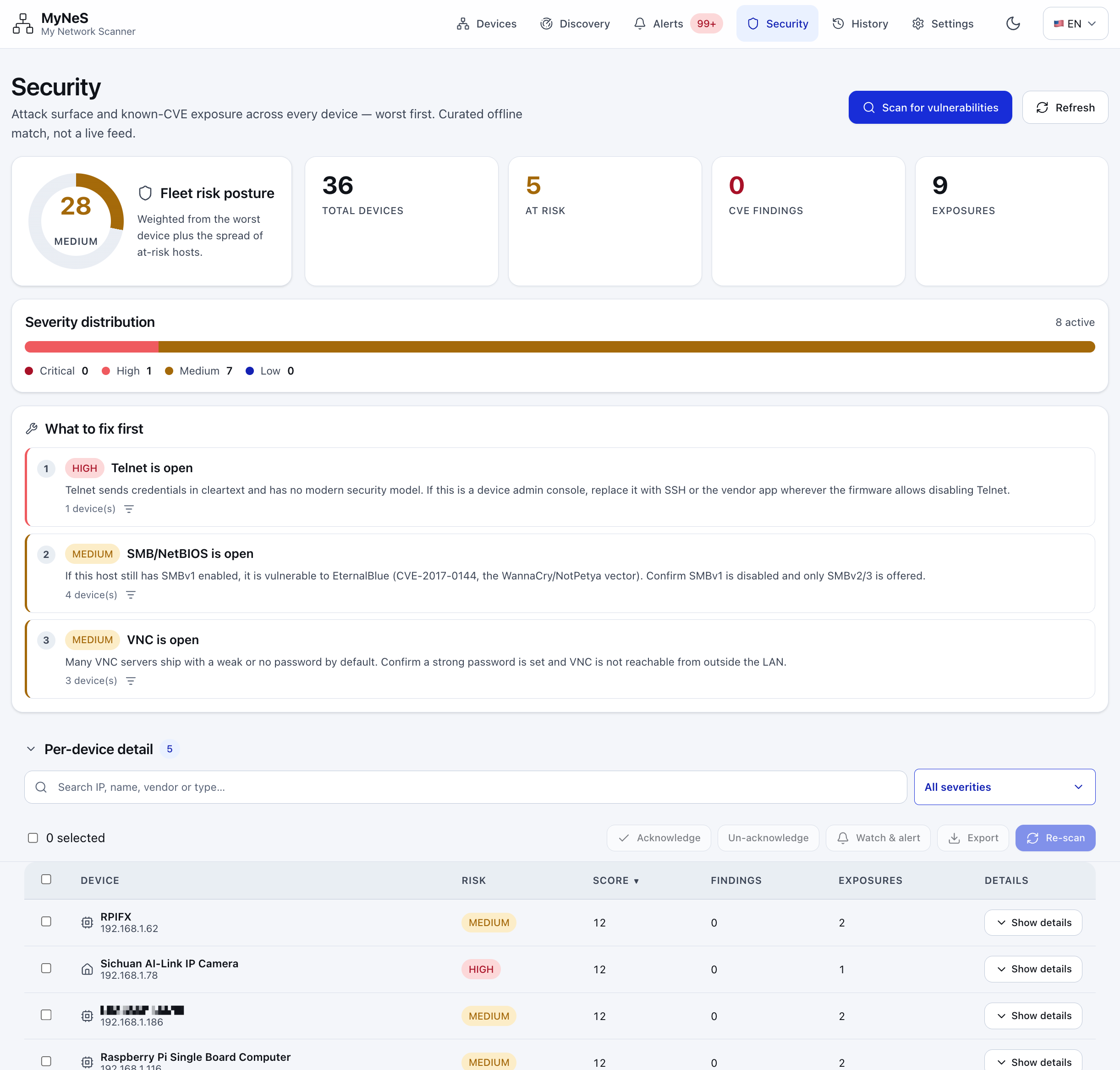

The Security page shows the whole fleet's attack surface and known-CVE exposure, worst first (curated offline match, not a live feed): a weighted fleet risk score, severity distribution, a “what to fix first” list and per-device detail. Credentials are stored with Fernet symmetric encryption and sanitized on export.

MyNeS security page showing attack surface, fleet risk score and CVE exposure

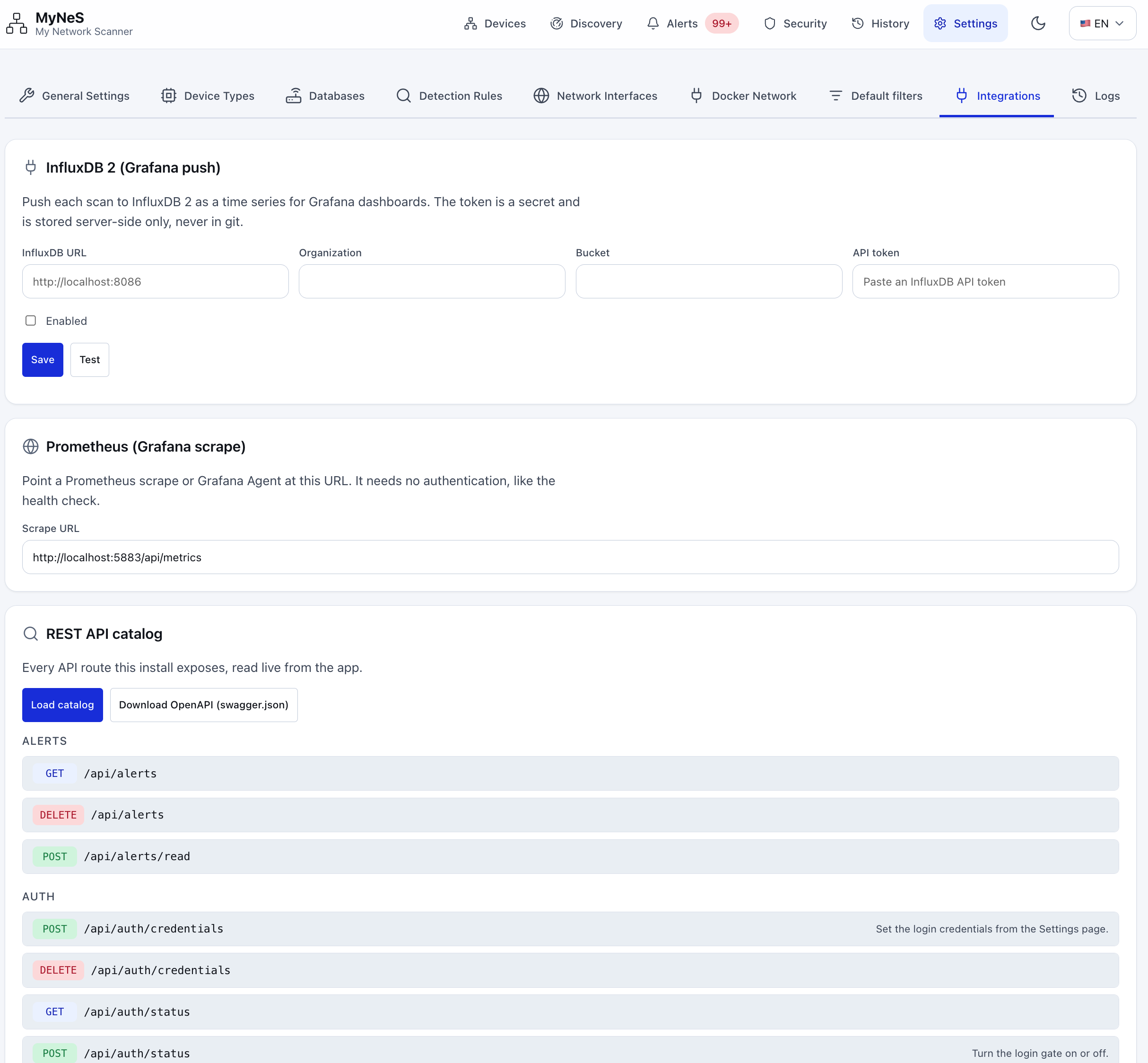

MyNeS integrations screen with InfluxDB, Prometheus and the REST API catalog
Integrations & API

Plugs into the stack you already run

Settings → Integrations offers InfluxDB 2 (Grafana push), Prometheus (Grafana scrape) and the app's full REST API catalog, read live and downloadable as OpenAPI (swagger.json). Home Assistant integration works via MQTT Discovery (push) and REST/WebSocket (pull), and there is a dedicated Home Assistant add-on that runs MyNeS as a one-click Supervisor add-on — add the repository, install, and it shows up in your sidebar.

Ayarlar → Entegrasyonlar; InfluxDB 2 (Grafana push), Prometheus (Grafana scrape) ve uygulamanın tüm REST API kataloğunu sunar — canlı okunur ve OpenAPI (swagger.json) olarak indirilebilir. Home Assistant entegrasyonu MQTT Discovery (push) ve REST/WebSocket (pull) ile çalışır; ayrıca MyNeS'i tek tıkla Supervisor eklentisi olarak çalıştıran özel bir Home Assistant eklentisi vardır — depoyu ekleyin, kurun, kenar çubuğunuzda belirir.

InfluxDB 2 Prometheus Grafana Home Assistant HA Add-on OpenAPI / Swagger
Native · Android & iOS

The whole scanner, now in your pocket

MyNeS Mobile is a standalone native app (React Native + Expo). The phone runs the entire scanning engine on-device — no server, no Docker, no pairing. It discovers, identifies and monitors every device on your home network: MAC, vendor, name, type and OS, with the same look and feel as the web app.

MyNeS Mobile, bağımsız yerel bir uygulamadır (React Native + Expo). Telefon, tüm tarama motorunu cihaz üzerinde çalıştırır — sunucu yok, Docker yok, eşleştirme yok. Ev ağınızdaki her cihazı keşfeder, tanımlar ve izler: MAC, üretici, ad, tür ve işletim sistemi — web uygulamasıyla aynı görünüm ve his.

Explore the mobile app Android & iOS · coming soon

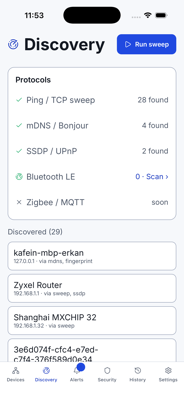

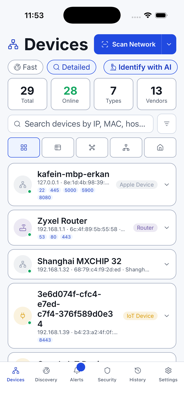

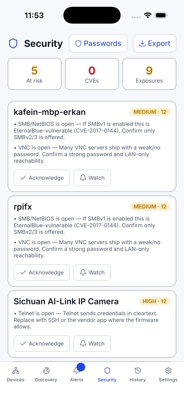

MyNeS Mobile discovery screen on iPhone MyNeS Mobile device list on iPhone MyNeS Mobile security screen on iPhone
Quick start

Running in one command

The image is published for linux/amd64 and linux/arm64, so it runs on a Raspberry Pi or Orange Pi as-is.

linux/amd64 ve linux/arm64 için yayınlanan imaj, Raspberry Pi veya Orange Pi üzerinde olduğu gibi çalışır.

services:
  mynes:
    image: fxerkan/my_network_scanner:latest
    container_name: mynes
    # Host networking is what lets it actually see the LAN.
    network_mode: host
    cap_add:
      - NET_ADMIN
      - NET_RAW
    volumes:
      - ./data:/app/data
      - ./config:/app/config
    environment:
      MYNES_PORT: 5883
      MYNES_PASSWORD: ""
    restart: unless-stopped

Then start it with docker compose up -d and open the web UI at http://<your-server-ip>:5883. Host networking and NET_RAW / NET_ADMIN are required because MyNeS sends raw ARP frames and listens for mDNS/SSDP multicast. It does not run as root and is not privileged. From source requires Python 3.9+ and Nmap; scripts/run.py creates the virtual environment, installs dependencies, checks for nmap and starts the app. Full step-by-step setup, configuration and troubleshooting live in the Docs. Only scan networks you own.

Ardından docker compose up -d ile başlatın ve web arayüzünü http://<sunucu-ip>:5883 adresinden açın. MyNeS ham ARP çerçeveleri gönderdiği ve mDNS/SSDP çoklu-yayınını dinlediği için host ağı ve NET_RAW / NET_ADMIN gereklidir. Uygulama root olarak çalışmaz ve ayrıcalıklı değildir. Kaynaktan kurulum Python 3.9+ ve Nmap ister; scripts/run.py sanal ortamı oluşturur, bağımlılıkları kurar, nmap'i kontrol eder ve uygulamayı başlatır. Adım adım kurulum, yapılandırma ve sorun giderme için Dokümanlar'a bakın. Yalnızca sahibi olduğunuz ağları tarayın.
